LoRaWAN Gateway (SIM)

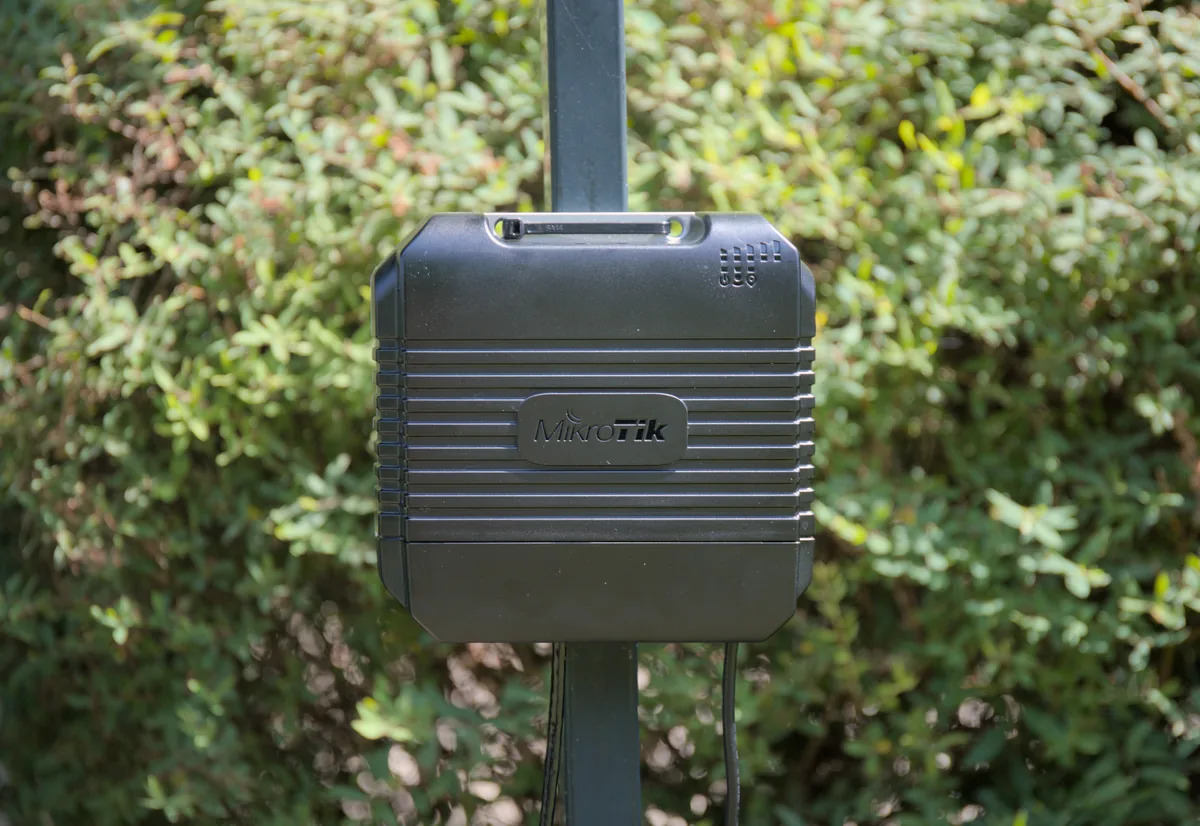

A fully configured outdoor LoRaWAN gateway, ready to deploy alongside your Fence Shield units. Supports LTE and Ethernet backhaul.
SIM included with 1 year of data.
Contact us for pricing.
All sales are subject to our General Terms and Conditions.
Overview
- Power
- 24V power adapter included
- Compatible with PoE-capable switch (12–30V passive)
- Supports auxiliary DC input for battery or solar setups
- Connectivity
- LoRaWAN coverage up to 15 km
- Works with a variety of LoRaWAN sensors
- 868 MHz / 915 MHz
- LTE or Ethernet backhaul
- Setup
- Pre-configured by Safora
- No technical setup required
- Runs on ChirpStack network server
- Easily add your own sensors and devices
- SIM
- SIM variant only:
- SIM card included with 1 year of data (renewable)
- Easily renewable after the first year
- SIM coverage in over 190 countries
What's in the box
In the box

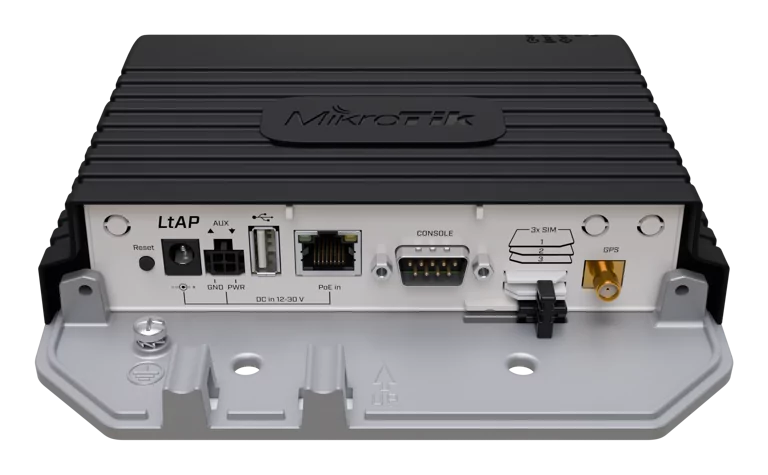

- 1xConfigured LoRaWAN gateway (MikroTik LtAP LTE7 kit)

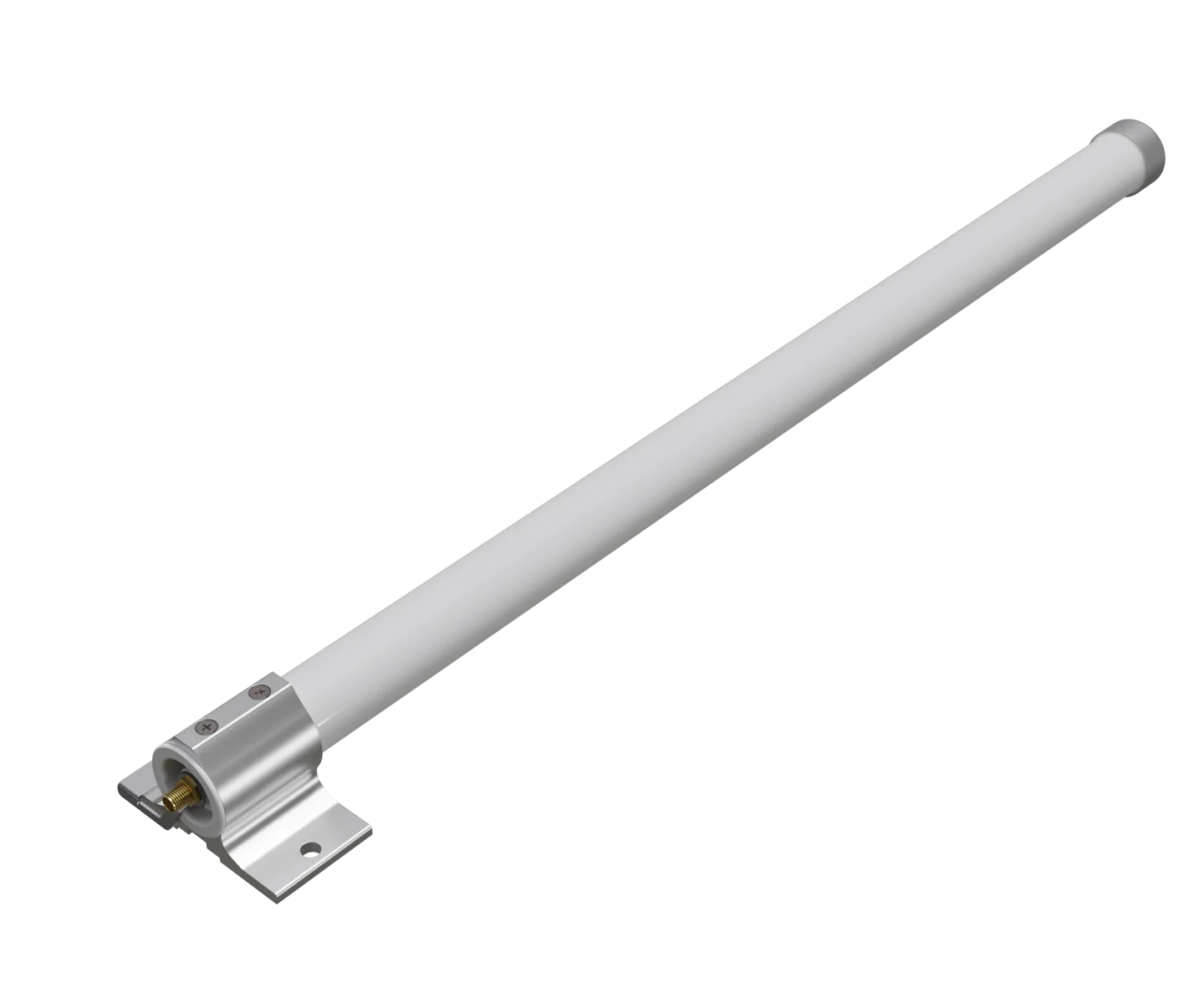

- 1xOmnidirectional antenna (868 MHz or 915 MHz)
- 1xPoE injector
- 1xPower supply
- 2xZip ties for mounting
- SIM variant only: SIM card included with 1 year of data (renewable)
Specifications
| Gateway model | MikroTik LtAP LTE7 kit |
| Dimensions | 170 x 162 x 40 mm |
| Weight | 980g |
| Provided mounting | UV-proof zip-ties |
| Enclosure rating | IP54 |
| Operating temperature range | -40°C to 70°C |
| Input voltage range | DC 12–30V, adapter included |
| LTE FDD bands | 1, 3, 5, 7, 8, 20, 28, 32 |
| LoRaWAN frequency | 868 MHz / 915 MHz |
