Fence Monitoring Starter Kit

    Everything you need to start monitoring a fence line, fully configured and ready to go out of the box.

    Includes three Fence Shield sensors and a Safora Gateway compatible with LoRaWAN. Based on the MikroTik LtAP LTE7 kit. SIM not included: connect the gateway over Ethernet or your own LTE SIM. Easily add more Fence Shields or other LoRaWAN sensors to the same network later.

    Monitor everything from the Safora platform.

    €1,049.00

    Prices exclude VAT. Contact us for volume pricing.
    All sales are subject to our General Terms and Conditions.

    Overview

    • Setup
      • Safora Gateway and all three Fence Shields preconfigured before shipping
      • No technical setup required
      • Just mount, power on, and go
      • LNS/backend (ChirpStack) provided by Safora
    • Alerts
      • Fence fault detection (cuts, voltage drops, short circuits)
      • Tamper and theft detection
      • Sub-minute alert latency
      • Hourly updates
    • Power
      • Outdoor mounting: outdoor-rated Cat cable required between PoE injector and Safora Gateway.
      • Fence Shields run on integrated solar panel and battery
      • Safora Gateway includes a power supply
      • No wiring required at the fence
    • Connectivity
      • LoRaWAN transmission up to 15 km per Fence Shield
      • Ethernet or LTE backhaul (SIM not included)
      • Add more Fence Shields or other LoRaWAN sensors to the same network later
    • Monitoring
      • Mobile notifications
      • Safora dashboard
      • EarthRanger integration

    What's in the box

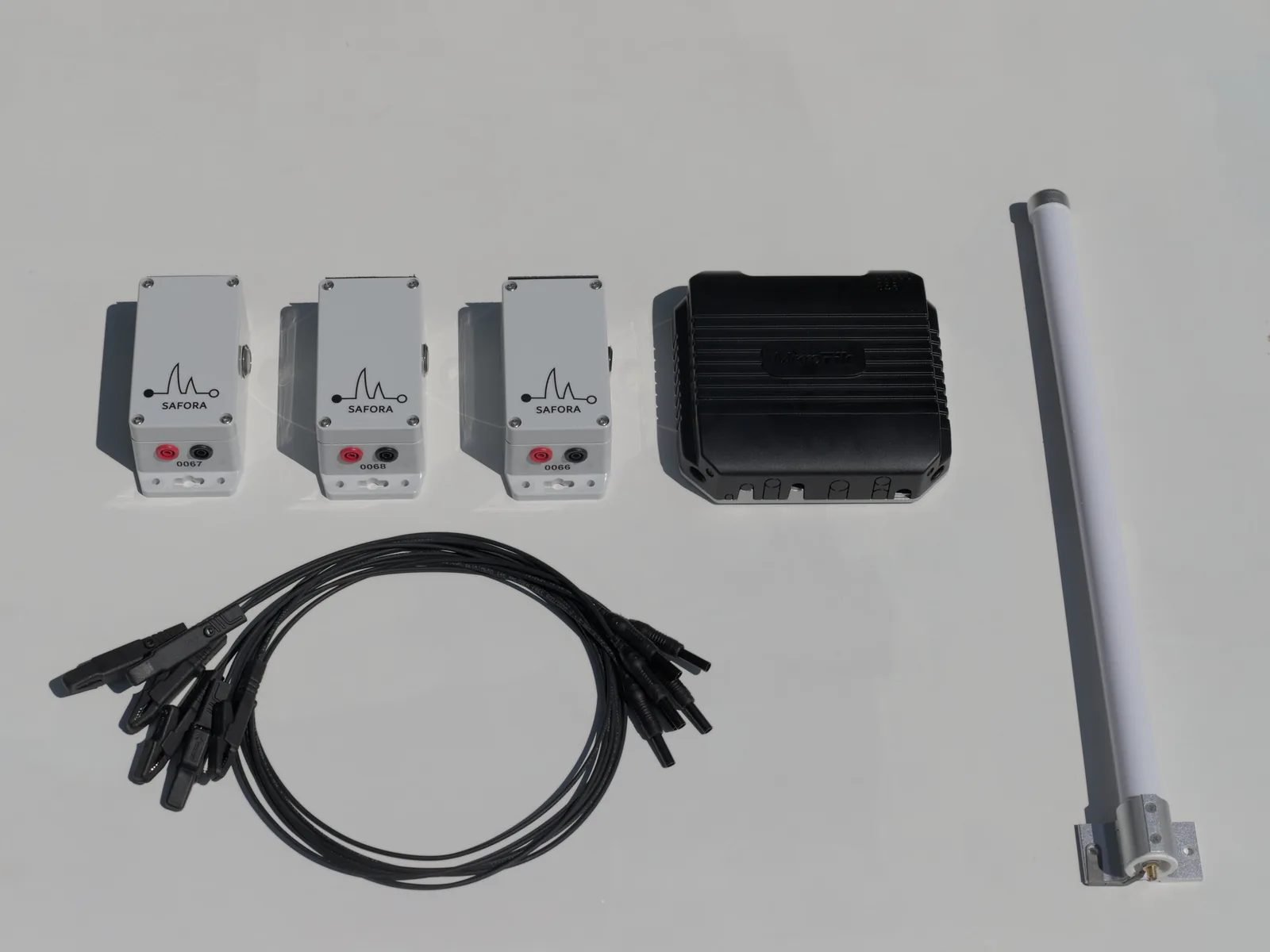

    In the box

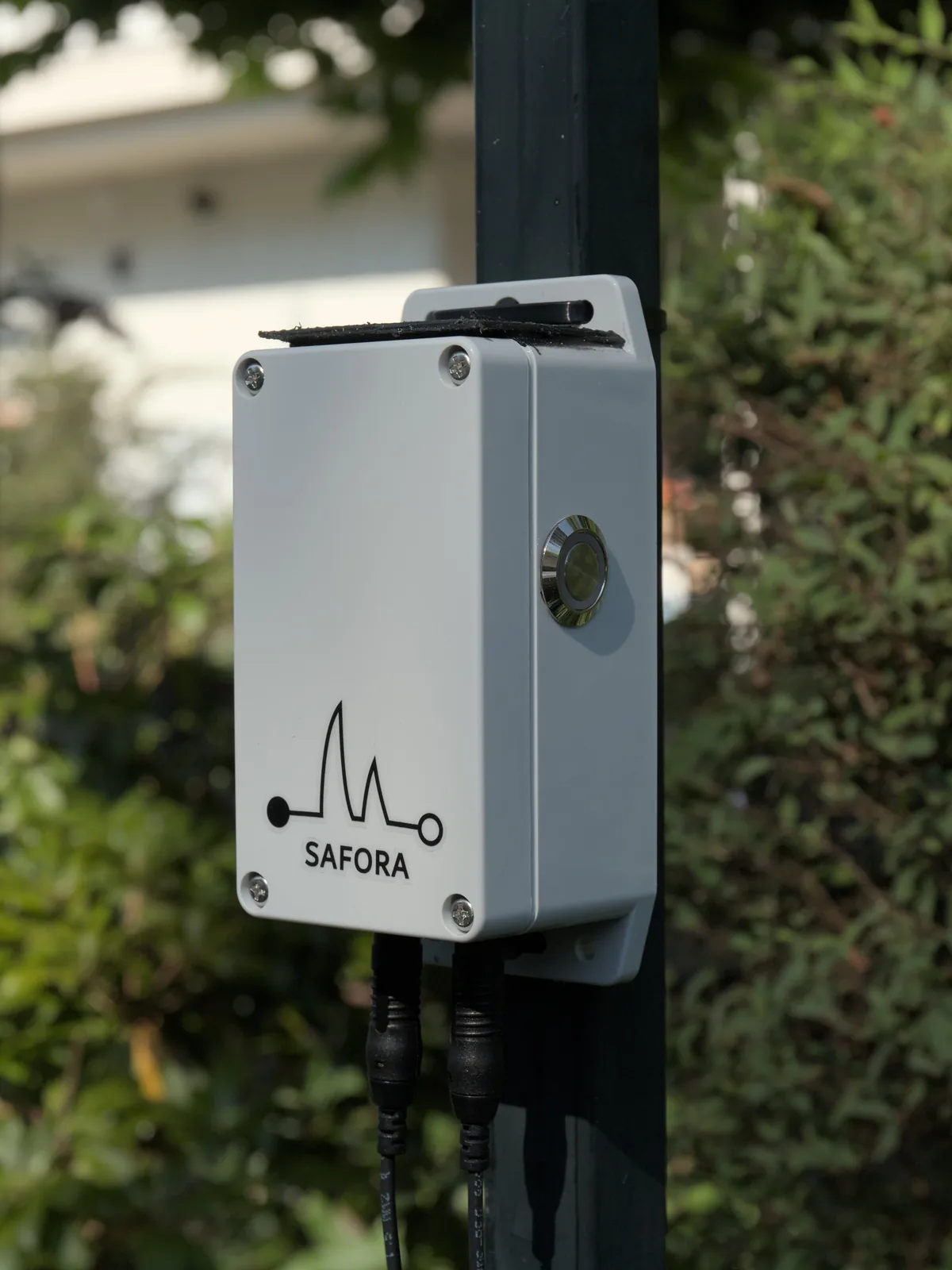

    • 3xFence Shield unit (solar panel & battery integrated)
    • 6xCables for fence connection
    • 6xZip ties for Fence Shield mounting
    • 1xConfigured Safora Gateway (MikroTik LtAP LTE7 kit)
    • 1xOmnidirectional gateway antenna (868 MHz or 915 MHz)
    • 1xPoE injector
    • 1xPower supply
    • 1xPole mounting bracket for Safora Gateway

    Specifications

    Fence Shield dimensions115 mm x 65 mm x 55 mm
    Fence Shield weight320g
    Fence Shield battery backup7+ days
    Fence Shield battery typeLiFePO4, rechargeable
    Maximum energizer voltage12 kV
    Recommended Fence Shield spacing1–2 km
    Safora Gateway modelMikroTik LtAP LTE7 kit
    Safora Gateway dimensions170 x 162 x 40 mm
    Safora Gateway weight980g
    Safora Gateway enclosure ratingIP54
    LoRaWAN frequency868 MHz / 915 MHz
    Measurement interval1 minute

    Resources

    All files and instructions are available in the Safora Wiki.

    Q&A

    No. The Safora Gateway and all three Fence Shields are preconfigured before shipping. Mount them, power them on, and they start reporting.

    We recommend one Fence Shield every 1–2 km of fence, and each can reach up to 15 km from the gateway in open terrain. As your fence grows, add more Fence Shields or other LoRaWAN sensors to the same gateway.

    Over Ethernet, or over LTE with your own SIM card. A SIM card is not included by default, but we can add one on request. Contact us for options.

    Alerts arrive as mobile notifications and on the Safora dashboard, within the minute of a fault.
